To determine Stabilizer (Sway) Bar diameter, measure the bar next to the bushing (toward the center of the vehicle), utilizing one of the methods below.
- Use a digital caliper or micrometer for a precise reading
- Use an open end wrench that fits snug around the bar, or tighten an adjustable wrench around the bar, and then measure the span opening
- Wrap a piece of non-stretchable tape (like masking tape) around the bar to get the circumference. Circumference divided by Pi (3.14) = Diameter. In the example below, the tape measured 3 5/8″. 3 5/8 = 29/8 = 3.63 inches. Diameter = 3.63/3.14 = 1.15 inches.

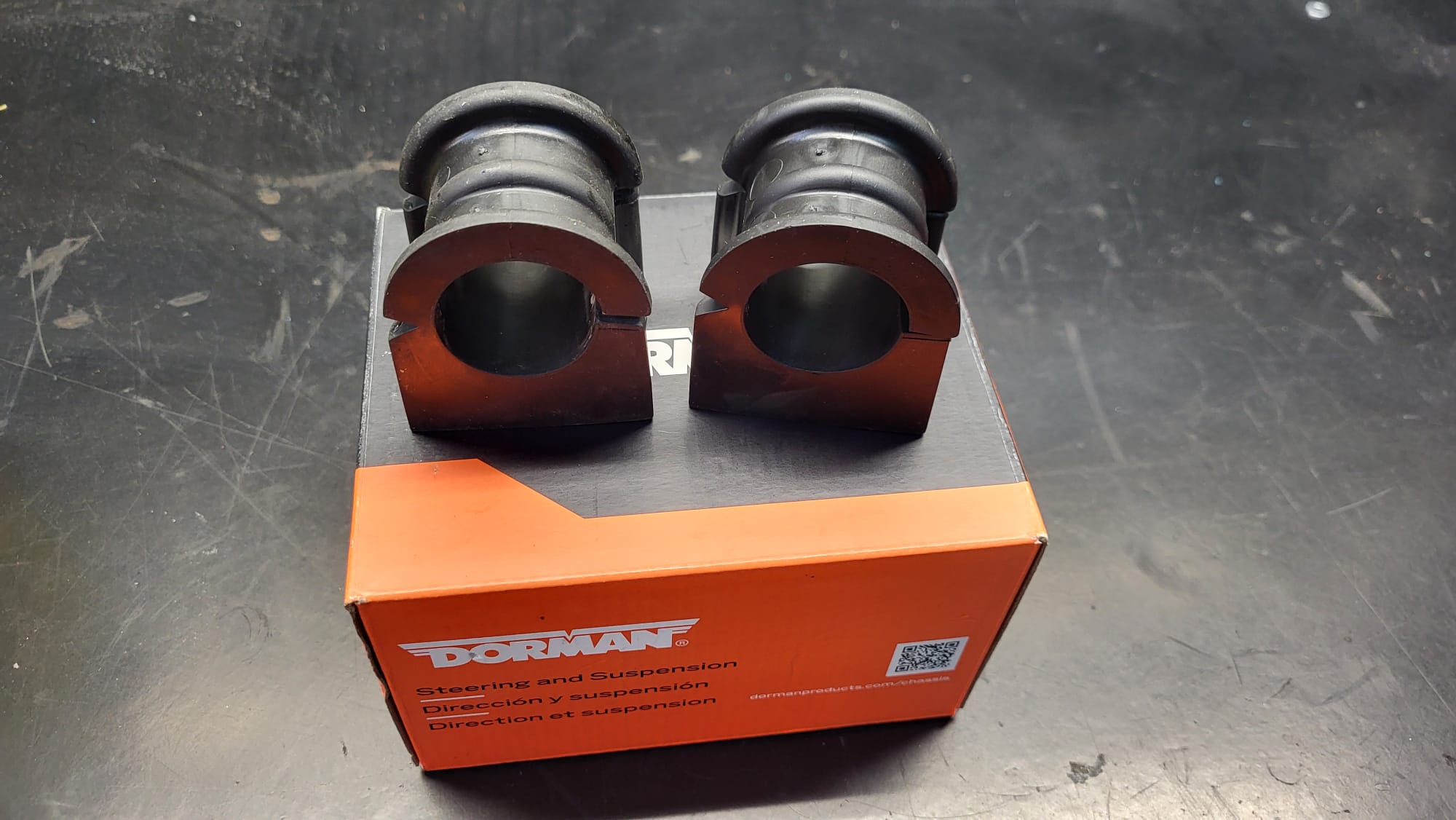

| DORMAN 540683 Specifications | |
|---|---|
| Assembled Length | 1.65 IN |
| Bracket Included | No |
| Grease Fitting Included | No |
| Inside Diameter | 1.32 IN |
| Material | Rubber |
| Outside Diameter | 2.13 IN |
| Package Contents | 2 Bushings |
| Width | 1.58 IN |
